Home > Product > New Products > 1000W 1200W LED Sports Stadium Light LED Highbay light

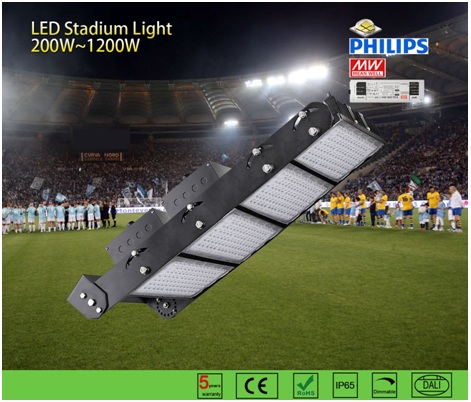

1000W 1200W LED Sports Stadium Light LED Highbay light

*Available in 200W 300W 400W 500W 600W 700W 900W 1000W 1200W

* Use high quality LED driver- MEANWELL brand.

* Use high luminous efficacy LED chips - Lumileds 5050.

* Die-cast aluminum lamp housing, excellent structure for heat dissipation.

*The surface of the lamp is anti-corrosion treated and powder coating, can be used at seaside.

*Dust-proof, moisture proof and waterproof, IP66 rated.

*Excellent optics design, higher luminous efficiency.

*Compare to traditional lamps can save energy 60%-70%.

*5 years warranty

  • Specification
  • Packing detail
  • Application
  • Inquire

 Product Description of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

LED Sports stadium light are designed to repalce 400W to 2000W Metal Halide and HPS stadium lights.

LED Stadium lights have so many applications over and above lighting up outdoor sports areas.

The area flood light can Light up courts and stadiums. These lights are durable and protect against tough weather conditions.

Also they can be used for security lighting, flood lighting and on top of large poles.

We can support high voltage applications up to 480V.



Specification of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

Input voltage:

AC85~305V 50/60Hz

LED Driver:

MEANWELL

Lamp Material:

Die-cast Aluminum+PC lens

Luminous flux:

≥140lm/W

CCT:

2700K~6500K

Power Factor:

>0.95

Lifespan:

>50000hours

IP Grade:

IP66

LED chip:

Lumileds 5050

Working Environment:

-40°C ~ 60°C

CRI:

>70

Beam Angle:

10°,25°,60°

Item no.:

GNH-SL-1-200W

Wattage:

200W

Size:

315×420×155 (mm)

GNH-SL-1-240W

Wattage:

240W

Size:

GNH-SL-1-300W

Wattage:

300W

Size:

GNH-SL-1-400W

Wattage:

400W

Size:

495×420×155 (mm)

GNH-SL-1-500W

Wattage:

500W

Size:

GNH-SL-1-600W

Wattage:

600W

Size:

GNH-SL-1-700W

Wattage:

700W

Size:

675×420×155 (mm)

GNH-SL-1-900W

Wattage:

900W

Size:

GNH-SL-1-1000W

Wattage:

1000W

Size:

855×420×155 (mm)

GNH-SL-1-1200W

Wattage:

1200W

Size:

 Product detail view for 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

Dimension of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

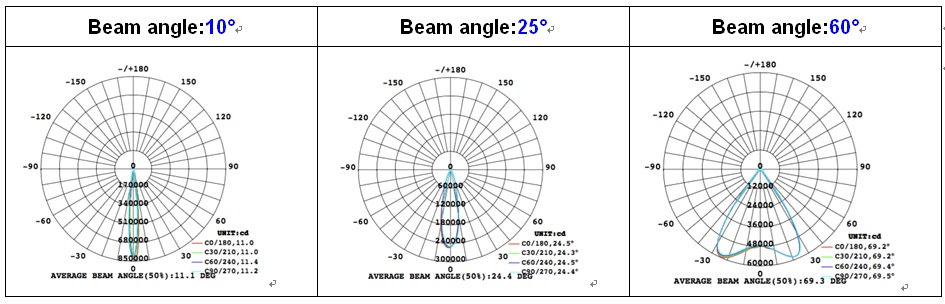

Luminous Distribution of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:





Bracket type of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:



PACKING DETAIL  of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

Item no.:

GNH-SL-1-200W

N.W:

9.20KGS

Carton Size:

440×495×230(mm)

GNH-SL-1-240W

9.20KGS

GNH-SL-1-300W

9.40KGS

GNH-SL-1-400W

14.50KGS

620×495×230(mm)

GNH-SL-1-500W

14.50KGS

GNH-SL-1-600W

14.90KGS

GNH-SL-1-700W

21.20KGS

800×495×230(mm)

GNH-SL-1-900W

21.80KGS

GNH-SL-1-1000W

26.00KGS

980×495×230(mm)

GNH-SL-1-1200W

26.80KGS







 LED Stadium lights have so many applications over and above lighting up outdoor sports areas.

The area flood light can Light up courts and stadiums. These lights are durable and protect against tough weather conditions.

Also they can be used for security lighting, flood lighting and on top of large poles.
