| ● Replacement for 40W traditional incandescent bulb |
| ● Indoor lighting for residential use |
|
● Lifetime: >25,000 hrs; lasting 25 times longer than incandescent bulb |
| ● Health protection: no UV/IR; more comfortable for vision |
|
● Environmental protection: zero Mercury; lower CO2 emission |
|
● Energy saving: electricity saving rate more than 80%; lower burden on air-conditioner |
| ● Lighting convenience: instant lighting-on with no flickering |
| ● Easy to use: compatible with general lamp-socket |

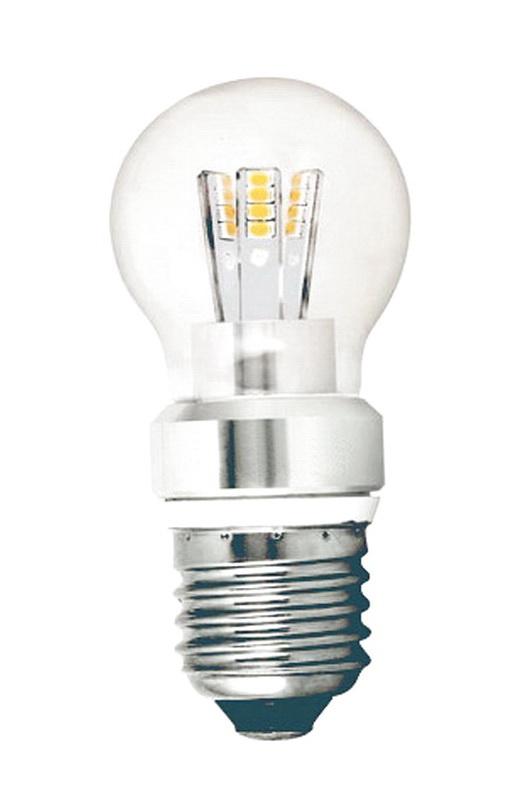

| Item Number | 3W LED Globe Bulb LZ-32R05 G40 | |
| Lumen Output | 280 lm ~ 310 lm | |
| Power Consumption | 3W | |
| Luminous Efficiency |
>90 lm/W |
|
| CRI |
>Ra75 |
|
| CCT |
3000K ~ 3200K， 5500K ~ 6500K |
|
| Working Voltage |
100V/50 ~ 60Hz, 120V/60Hz, 220V/50 ~ 60Hz |
|
| Powerfactor |
?>0.9 |
|
| Light Source |
Epistar SMD 3020 |
|
| LED Quantity |
24 pcs |
|
| Base |
E14, E26, E27, B22 |
|
| Dimmability | No | |
| Beam Angle |
270º |
|
| Heatsink |
Silver, Gold, Aluminum |
|
| Glass Cover Option |
Transparent, Frosted, Milky |
|
| Lifetime |
25,000 hours, 8 hours a day, life experancy of 8 years |
|
| Warranty |
2 Years Limited，we offer 2 years replacement for quality problem |
|
| Certificate |
CE, RoHS |
|
| Measurement |
87mm x 40mm diam./87mm x 40mm diam. |
|
| Packing Box |
?12 / 48 pcs |
|
| Outer Carton |
?? |
|
* Temperature Management guarantees the lifetime of the lamp.
LED retrofit candlelight is suitable for all sorts of applications such as in hospitals, museums, universities, bars & restaurants, hotel corridors, etc.
| Product | Power (watts, W) | Luminous Flux (lm,lm) | Replacement the incandescent power (watts,W) |
|
LED Bulb |
2 | 150 ~ 180 | 25 |
| 2.5 | 200 ~ 230 | 40 | |
| 3 | 250 ~ 310 | 40 | |
| 4 | 250 ~ 310 | 40 | |
| 5 | 350 ~ 380 | 60 | |
| 6 | 450 ~ 480 | 100 |
