Home > Product > LED Street Light > LED Street Light LED Flood Light Project LED Lamp Garden Pathway LED Lighting

LED Street Light LED Flood Light Project LED Lamp Garden Pathway LED Lighting

*50w 80w 100w 150w 200w 250w LED Street Light Super Bright

*Adopted Philip 3030 led Chip as light source with high lighting efficiency, high CRI, high PF, low light degradation.

*Luminous efficiency: 110lm/w±5%

*Input voltage: AC100-240V

*Beam Angle: 60 ° ,90 ° ,80*150 °

*Shell Material Aluminum Alloy,Shell Color:Black,Grey

*Driver: Meanwell driver

*5 years warranty

Download Collection Catalogue Inquire

Specification
Application
Packing details
Inquire

Greenough LED street light fixtures bring roadway and parking area illumination into the 21st century. Our patented optics maximize light distribution and placement with exceptional, low-glare illumination on the intended area, while minimizing light trespass into nearby homes and businesses. Designed for both new installation and facilities currently using HID cobra head-style fixtures, Greenough's high-grade aluminum alloy housing with high-durability powder coating provides superior performance and longevity in virtually any environment. The Greenough line offers outstanding long-life reliability to dramatically reduce energy and maintenance costs, all backed by our 5 years warranty.

Specification for led street light 50w 80w 100w 150w 200w 250w:

Item NO.	GNH-STL-1-50W	GNH-STL-1-80W	GNH-STL-1-100W	GNH-STL-1-150W	GNH-STL-1-200W	GNH-STL-1-250W
Power (W)	50W	80W	100W	150W	200W	250W
Lumem (lm)	110lm/w±5%	110lm/w±5%	110lm/w±5%	110lm/w±5%	110lm/w±5%	110lm/w±5%
Input voltage(V)	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
LED type	Philip 3030	Philip 3030	Philip 3030	Philip 3030	Philip 3030	Philip 3030
Color index (CRI)	80	80	80	80	80	80
Dimension	47132088mm	54032088mm	54032088mm	61332088mm	68432088mm	75532088mm
Beam angle	60 ° 90 ° 80*150 °	60 ° 90 ° 80*150 °	60 ° 90 ° 80*150 °	60 ° 90 ° 80*150 °	60 ° 90 ° 80*150 °	60 ° 90 ° 80*150 °
Shell color	Black/Gray	Black/Gray	Black/Gray	Black/Gray	Black/Gray	Black/Gray
PF	＞0.9	＞0.9	＞0.9	＞0.9	＞0.9	＞0.9

Product size:

Distribution Curve:

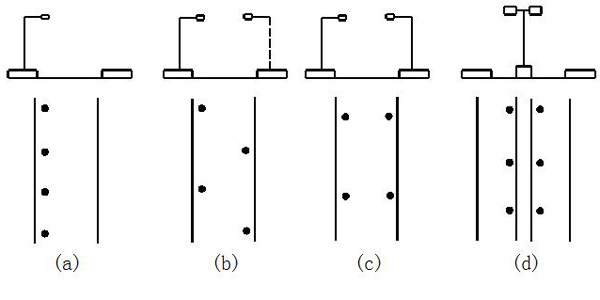

Installation:

Application for Greenough led street light:

Widely used in architectures and large space, such as street, garden, pathway, tunnel, station, seaport, park, sports area and advertising board on the square ,architectural, airport,lawn, marketplace,playground,tennis,court,golf course,basketball court, football court... etc.

Packing details:

Part No.	Packing
GNH-STL-1-50W	1Pc/Ctn; 7.3KGS/PC; Ctn size:528385155mm
GNH-STL-1-80W	1Pc/Ctn; 7.8KGS/PC; Ctn size:599385155mm
GNH-STL-1-100W	1Pc/Ctn; 7.8KGS/PC; Ctn size:670385155mm
GNH-STL-1-150W	1Pc/Ctn; 8.3KGS/PC; Ctn size:670385155mm
GNH-STL-1-200W	1Pc/Ctn; 8.8KGS/PC; Ctn size:741385155mm
GNH-STL-1-250W	1Pc/Ctn; 9.3KGS/PC; Ctn size:812385155mm
