TG50S GNH FL MN03 COB SMD 50W bridgelux LED Flood Lighting

1、Aluminum alloy diecasting,high shock-resistant,multiple anti-shock design and coating on surface,long term operation in high-frequency vibration and high temperature situation such as roadbed and track.

2、Multiple fix types such as wall mounting and ceiling mounting,beam angle can be adjust up and down by 120°.

3、Reflector are highlight anodic oxidation high  imported purity aluminium, high lighting effect.

4、Lamp-house:Using good tempered glass,heat-resistant,shock-resistant,high transmittance.

5、Seal ring:Using heat-resistant silastic.

6、IP Grade:IP65

  • Specification
  • Application
  • Note
  • Inquire

Product  model

GNH-FL-MN03-50W-H0I

Input voltage(V)

85~265V   AC

Frequency  (Hz)

50 to 60Hz

Power (W)

50W

Lumen (lm)

4900lm-5000lm

LED type

COB or SMD

Color index (CRI)

≥75

Color temperature

2700-6500k

Efficiency

≥85%

Decline

3% within 3000Hrs

Life time (Hrs)

≥50,000H

IP grade

IP65

Beam angle

120°

Humidity

5 to 95 R.H.

Work temperature

-20+55

Material

Aluminum

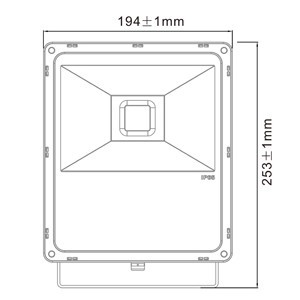

Dimension

253*194*95mm

Widely used in architectures and large space, such as tunnel, station, seaport, park, sports area and advertising board on the square ,architectural, airport,lawn, marketplace,playground,tennis,court,golf course,basketball court,football court... etc.
