GNH-MN03-HBL-180W-200W-H0 Bridgelux led high bay light for industrial

 *Adopting Bridgelux integrated Chip as light source with high lighting efficiency, high CRI, low light degradation.
*Input voltage: AC90~305V,Over voltage,over current protection.
*Heat dissipation design: adopt high thermal conductivity aluminum shell, laminated structure, thermal conductive area is fully, IP 65.
*Can start up within 1`3 seconds, no flicker, anti-jamming, no mercury, energy saving, environment friendly.
*Shell Material: Aluminum Alloy,Shell Color:Black,Grey,Warm and cold color temperature is available.
*Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light.

  • Specification
  • Application
  • Packing Details
  • Inquire

  180W 200W LED high bay light specifications



Product  Model

Input voltage /Driver

LED Qty(pcs)

Lumen (lm)

LED chip

CRI(Ra)

IP grade

Beam angle

Material

GNH-MN03-HBL-180W-H0

AC90-305V Meanwell

1*180W

120-130 LM/W

Bridgelux

≥75

IP65

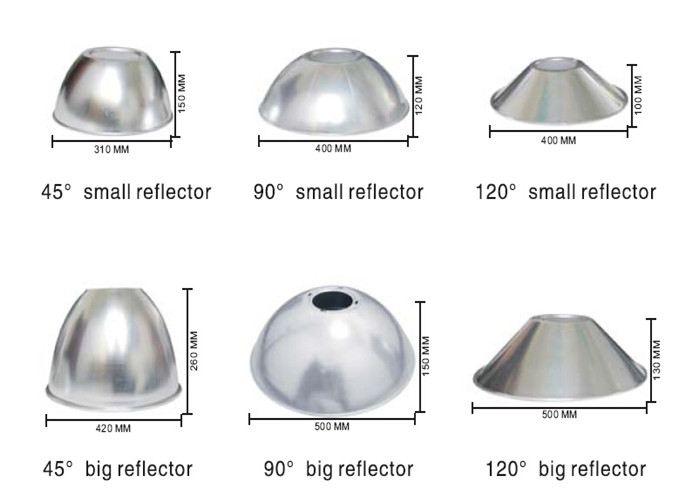

45°/90°/120°

Die-casting+optical glass

GNH-MN03-HBL-180W-H0

AC90-305V Meanwell

1*200W

120-130 LM/W

Bridgelux

≥75

IP65

45°/90°/120°

Die-casting+optical glass



 The Dimensional Drawing of 180W 200W led high bay light

Brightness contrast:(45 degree beam angle for reference)

The installation of our led high bay light

Key words: LED High Bay Light





Greenough Enterprise Co., Ltd produce (AC Driverless dimmable) led T8T5 tube lightPink led tube lightled panel light(AC Driverless dimmable) led spot light(AC Driverless dimmable) led down light(AC Driverless dimmable) led flood light(AC Driverless dimmable) led high bay light, led canopy light, led PAR light.







 Application:
LED High Bay Light adopts High quality LED chips source with longer lifespan and low lighting decay LED High Bay Light Application: Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.


  Packing Details:



Part No.

Lamp body Packing Box

Reflector Packing Box

Gross Weight(one pc)

GNH-MN03-HBL-180W-H0 GNH-MN03-HBL-200W-H0

470*300*300MM (20pcs/ctn)

425*425*695 (20pcs/ctn) 530*530*325(20pcs/ctn)

8.30KGS
